Microarray Products
3031-PP-02 72041

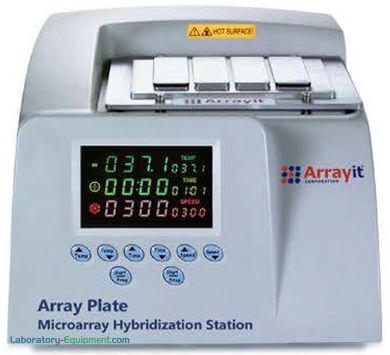

阵列板多孔Microarray Hybridization Stations by Arrayit
阅读更多
通过：ArryIt制造
Product Details
•Arrayit Arrayit Featuring Peltier加热和冷却阵列杂交站
• Quickly and efficiently hybridizes and incubates DNA, protein, carbohydrate and peptide microarray
• 1-Plate capacity#MMHS110V for 96 microarrays
• 2-Plate capacity #MMHS2 for 192 microarrays
• 4-Plate capacity #MMHS4 for 384 microarrays
• Temperature range:
•微电脑控制定时器，加热，冷却和混合操作
• Operations progress easily visible on high-luminosity 3-color digital display
• Alloy block allows rapid heating and cooling
• Versatile block accepts microplates and single tubes
• Compatible with microarray microplate hardware AHC4x8S, AHC4x8L, AHC4X16 and AHC4X24
•应用：杂交/孵育DNA，蛋白质，碳水化合物和肽微阵列
Features & Benefits
Features and Benefits
Single and Multi-Plate Models
Print
复制Copied
More Information
| 模型 | #MMHS110V | #MMHS2 | #MMHS4 |
|---|---|---|---|
| 容量 | Single-Plate Capacity | 2-Plate Capacity | 4-Plate Capacity |
| Simultaneous reactions | up to 96 microarrays | 高达192个微阵列 | up to 384 microarrays |
| Mixing speed | 300至1,500 rpm | 300至1,200 rpm | |
| Temperature range | ambient to 100°C heating | 环境温度为60°C加热 | |
| 定时器范围 | 1分钟到100个小时 | ||
| Mixing amplitude of micro-well samples | 3 mm | ||
| Temperature control accuracy | ±0.5°C | ||
| 显示精度 | ±0.5°C | ||
| 温度均匀 | ±0.5°C | ||
| 加热时间 | 20°C至100°C：10分钟 | 25°C to 37°C: 10 minutes | |
| 冷却时间 | 100°至20°C：10分钟 | 37°C to 25°C: 5 minutes | |
| Dimensions （w x d x h） |
10 x 13 x 7英寸。 (270 x 330 x 170 mm) |
10 x 11 x 5英寸。 （260 x 270 x 130 mm） |
15 x 15 x 6 in. (381 x 381 x 140 mm) |
| 净重 | 18.7磅（8.5千克） | 13.4 lbs. (6.1 kg) | 19.4磅。（8.8千克） |
| Compatible well configurations | AHC4x8L and AHC4x24 well configurations | ||
| 电源要求 | 110 – 240V AC at 50/60Hz and 150W | 110-240V AC at 50/60Hz and 40W | 110-240V AC at 50/60Hz and 50W |
| 包括 |
|
||
将杂交率加速约10倍
图1-a。在玻璃盖滑动下在30μl下在42°以42°杂交30分钟

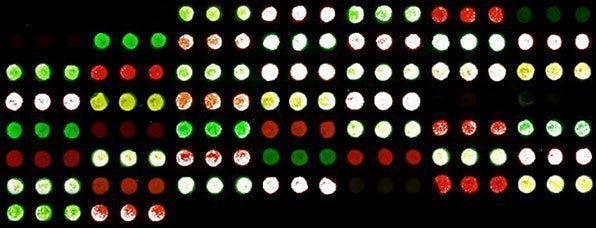

Figure 1-B. Hybridized for 30 minutes in 200 µl at 500 rpm using an Array Plate Hybridization Station. Figure 1-B shows a 10-fold increase in signal compared to figure 1-A. Even with a 6.7-fold greater probe dilution, the Array Plate produced a stronger signal compared to static cover slip hybridization reactions. Note: Microarrays were spun dry for 3 seconds using the Microarray High-Speed Centrifuge and scanned on an Arrayit InnoScan® 710AL Two-Color High-Speed Fluorescence Scanner

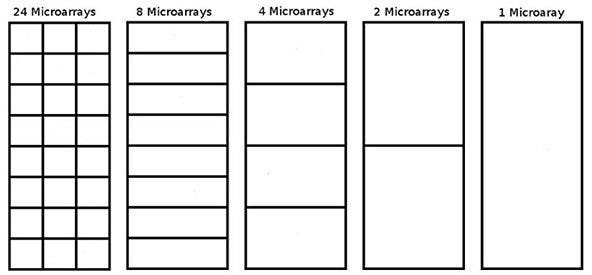

图2.板杂交站适用于各种盒式磁带，用于快速且有效的微阵列杂交反应。垫圈可以修改到各种格式。用微孔板箔密封盒密封盒，以消除杂交过程中的样品蒸发。
图3.多孔杂交站接受用于保持管，板，腔室和盒的各种可互换的块管。

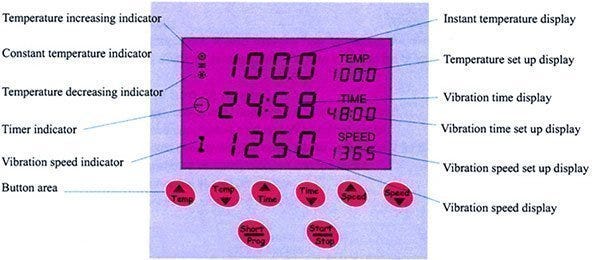

图4.本显示图显示了微阵列多孔微阵列杂交站的各种特征。
易于放置杂交盒和基材
用阳极氧化铝盖和硅胶垫圈置于ressit多孔杂交盒之间的基板载玻片
加热和冷却合金块
快速加热和冷却合金块可容纳4×24孔并提高杂交反应的效率
