- ED系列Classic.Line重力对流烤箱，设计用于快速高效的干燥和灭菌任务，可达300°C
- Inner chamber provides homogeneous temperature control
- 无论样本大小如何，都提供一致的测试条件
- Effective thermal insulation reduces operating cost
- Wide temperature range suitable for use in science, medical, research and quality assurance heating applications
Ovens
1410-PP-03 71494
ED Heating and Drying Chambers Classic.Line by BINDER Worldwide
阅读更多
Manufactured By: Binder
保修：1年零件，90天劳动力
产品详情
• ED Series Classic.Line gravity convection ovens designed for quick and efficient drying and sterilization tasks up to 300 °C
•内腔提供均匀的温度控制
•提供一致的test conditions regardless of sample size
•有效的隔热降低了运营成本
•适用于科学，医疗，研究和质量保证加热应用的宽温度范围
• Available in 20L, 400L and 720L interior volumes
• Temperature range: RT +5 °C to 300 °C
• APT.line preheating technology provides optimal temperature uniformity and faster recovery times
• Gravity convection
• Ramp function, Time Delayed OFF and Adjustable exhaust air flap
•2类独立可调温度安全装置（DIN 12880），具有可视警报和带有定时器功能的LED控制器
• Includes 2 chrome-plated racks
-
粘合剂经典线ED 720加热和干燥室
-
粘合剂经典线ED 23加热和干燥室
-
BINDER Classic Line ED 400 Heating and Drying Chamber
粘合剂类.Line加热和干燥室提供均匀的干燥条件和300°C的最高温度|1410-03展示

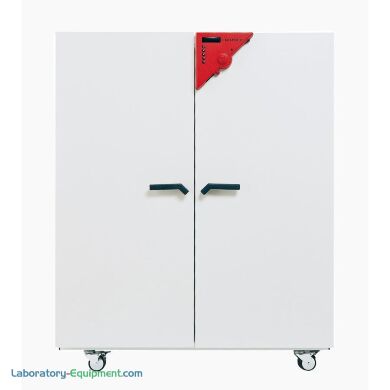

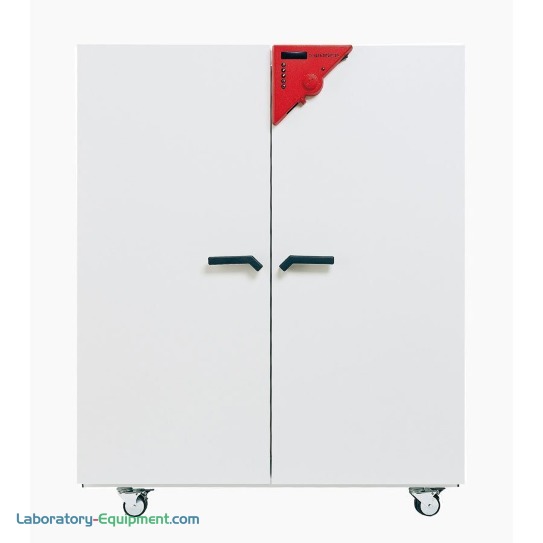

粘合剂经典线ED 720加热和干燥室
Popular ED 720 model with double oven doors features a generous inner chamber for high throughput labs; includes 2 chrome-plated shelves and accepts up to 16.
BINDER Class.Line Oven includes one manual door and 2 chrome-plated racks|1410-01展示

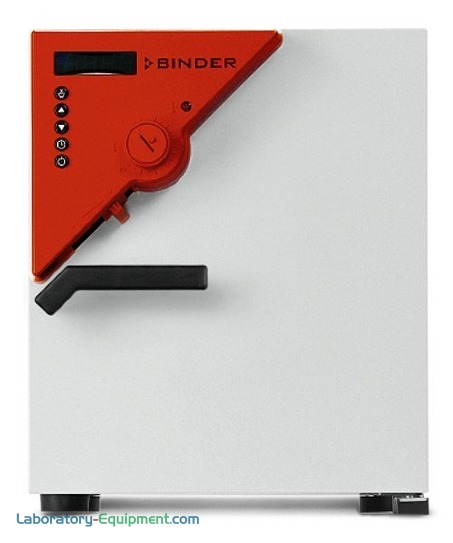

粘合剂经典线ED 23加热和干燥室
Compact ED 23 model with single door easily fits in tight lab spaces; includes 2 chrome-plated shelves and accepts a maximum of 4 shelves.

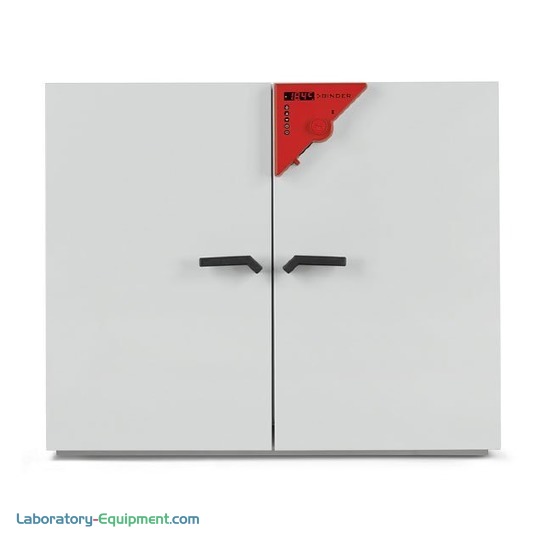

ED 400 model with double doors includes 2 chrome-plated shelves and accepts a maximum of 10 shelves|1410-02展示
BINDER Classic Line ED 400 Heating and Drying Chamber
ED 400粘合剂加热和干燥室由具有斜坡功能的2门腔室组成，延迟关闭和可调节的排气挡板。以及预热技术，以获得最佳的温度均匀性和更快的恢复。
Features & Benefits
Features and Benefits
Options and Specifications
打印
Copy复制
ED Series Drying and Heating Chambers Options and Accessories
The ED Series drying and heating chambers feature a wide range of options to satisfy numerous applications. Contact a sales engineer for pricing on the complete listing of options.

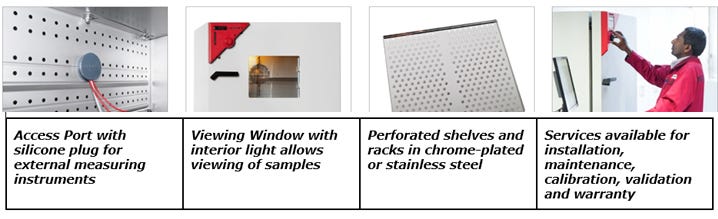

- 使用有机硅插头访问端口
- Alarm function for overheating
- Analog output 4-20 mA
- Calibration certificate, expanded
- Calibration certificate, temperature
- Class 3.1 independent temperature safety device
- 数据记录器套件
- Data Logger Software
- Door Gasket
- Door Lock
- 仪器托盘
- 接口转换器
- 接口转换器, USB/RS422
- 空气汇率测量
- pH- Neutral Detergent
- Pt 100 Temperature Sensor
- 齿条（不锈钢或镀铬）
- RS 422 Interface
- RS 422 Interface, Cable (15 in.)
- RS 422接口，电缆（50英寸）
- Software
- Viewing Window and Interior Lighting
| Model | 编辑23. | ED 400 | ED 720 |
|---|---|---|---|
| Electrical | 120V 60Hz. | 208V 60Hz | 208V 60Hz |
| Net weight of the unit (empty) | 60 lbs. (27.2 kg) | 276 lbs. (125.2 kg) | 384磅。（174.2千克） |
| Overall Dimensions | 17.17 x 20.5 x 19.5 in. (435 x 521 x 495 mm) |
48.7 x 30.14 x 40.4 in. （1237 x 766 x 1026 mm） |
48.7 x 34.1 x 60.3在。 (1237 x 866 x 1532 mm) |
| 内部尺寸 | 8.75 x 11.82 x 13英寸。 (222 x 300 x 330 mm) |
39.4 x 20.5 x 31.5 in. (1000 x 520 x 800 mm) |
39.4 x 24.4 x 47.3在。 (1000 x 621 x 1201 mm) |
| Interior volume [cu. ft.] | 0.7 cu. ft. (19.82 L) | 14.1。（400 L） | 25.4. (719.3 L) |
| Temperature range 5 °C above ambient temperature to [°C] | 300 | 300 | 300 |
| Temperature variation at 150 °C [± K] | 2.8 | 3 | 3.6 |
| Temperature fluctuation at 150 °C [± K] | 0.5 | 0.5 | 0.5 |
| Heating-up time to 150 °C [min] | 28. | 71. | 84. |
| Recovery time after 30 seconds door open at 150 °C [min] | 28. | 31. | 34. |
| 空气变化（约。）在150°C [x / h] | 13. | 10. | 9 |
| 允许的装载 | 55磅。（25千克） | 198磅。（89.8千克） | 265 lbs. (120 kg) |
| Load per rack | 26磅。（11.8千克） | 77 lbs. (34.9 kg) | 99 lbs. (44.9 kg) |
| 能量消耗在150°C [WH / H] | 148. | 672 | 750 |
| Unit doors | 1 | 2 | 2 |
| Number of shelves (std./max.) | 2/4 | 2/10 | 2/16 |
均匀的加热和温度分布
Select BINDER Heating and Drying Chambers feature forced air convection for efficient drying and sterilization tasks
ED系列温度范围
Wide temperature range from 5 °C above ambient temperature to 300 °C suitable for many heating and drying applications.
ED 720 Drying Hrating Chamber Chrome Racks
The temperature uniformity is a result of the Class 2 independent adjustable temperature safety device (DIN 12880) with visual alarm.
