•Wavelength Range:200-900 nm
•Design:UV/Visable
•Manufacturer SKU:6973-J014A
•Unit of Measure:EA

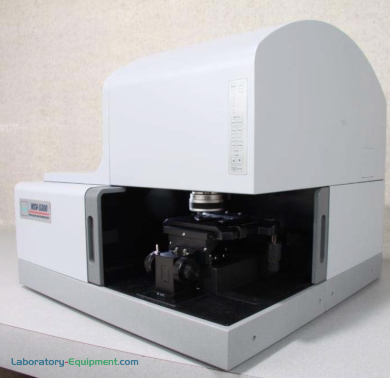

• MSV-5100 microscopic spectrophotometer for transmittance and reflectance measurements
• Monochromator and built-in microscope for optimal optical configuration
• Wide wavelength range of 200-900 nm
• Spectral bandwidth: 1, 2, 5, 10, L2, L5, L10 nm
•Includes:PMT Detector and JASCO Spectra Manager II Software
• Front, side and manual light shielding door
• 10 μm minimum measurement area
•Measurement modes:transmittance, reflectance and transmittance/reflectance measurements
• High wavelength resolution: 0.1 nm (Vis)
• High wavelength accuracy: ± 0.3 nm (Vis)
• Polarization measurement angle setting: 0, 90, 45, 0 and 90 deg., arbitrary angle settings
•Provides reflection optics withNOlight losses
• Optical system: Double beam single monochromator Czerny-Turner mount
• Light Source: 30W Deuterium lamp, 20W Halogen lamp
• Scan modes: Continuous scan, step scan
• Sample observation (option): Binocular, polarized observation, objective lens
• Objective: Cassegrain objective, 10×, 16×, 32× selectable
• Condenser mirror: Cassegrain collection mirror, 10×, 16×, 32× user-interchangeable (Automated condenser mirror compensation function)
•孔径:游览dual-aperture设置for circular and rectangular (slit type) apertures; 10, 20, 30, 50, 100, 200 μm (16× objective); 5, 10, 15, 25, 50, 100 μm (32× objective); 16, 32, 48, 80, 160, 320 μm (10× objective)
• Sample stage: Manual stage (working area: X 50 × Y 75 × Z 20 mm)
• Polarizer: Glan-Taylor, automatic insertion/angle setting
• Control panel: Cassegrain switching and indicator, transmittance/reflectance mode indicator, aperture selection, measurement start/stop, auto focus, automatic condenser mirror compensation, optical zoom, automated sample illumination, sample compartment illumination ON/OFF, ATOS illumination ON/OFF
• USB communication: MSV-5000 camera and camera
• Power Requirements: 150 VA
•Spectra Manager II features:Microscopic measurement, microscopic time course measurement; microscopic analysis, spectrum analysis, common analysis functions
• Optional Light Source: 150W Xenon lamp (air-cooled)
• Sample stage (option): Auto-stage (working area: X 76 × Y 52 × Z 25 mm, 1 μm step), joystick
•Wavelength Range:200-900 nm
•Design:UV/Visable
•Manufacturer SKU:6973-J014A
•Unit of Measure:EA
•Weight, Product:33.06 lb
•Dimensions, Product:27.55" W x 29.13" D x 25.19" H
