- Included Shelf supports
- Height including casters: 7.36"H
•Accessory Type:Stand
•Compatible With:Heratherm Advanced Protocol, Heratherm General Protocol, Heratherm Security
•Unit of Measure:EA
•Accessory Type:Stand
•Compatible With:Heratherm Advanced Protocol, Heratherm General Protocol, Heratherm Security
•Unit of Measure:EA

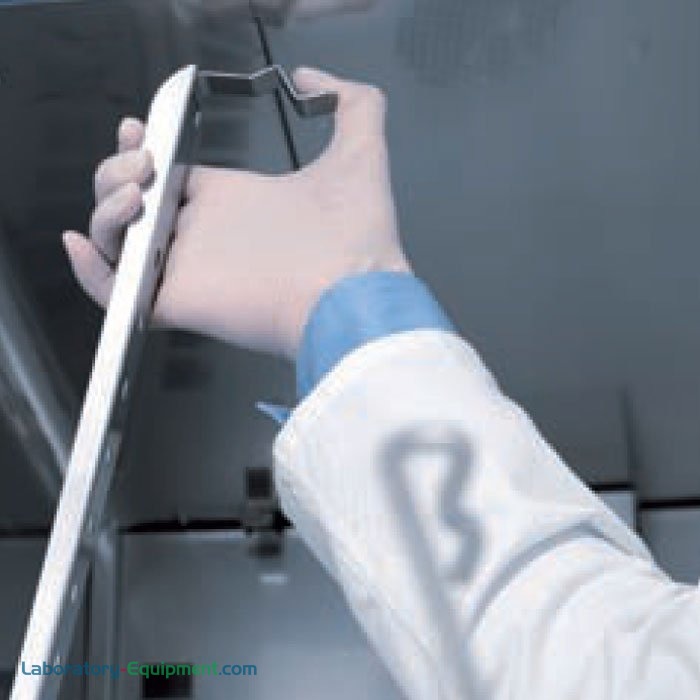

• Included Shelf supports
• Height including casters: 7.36"H

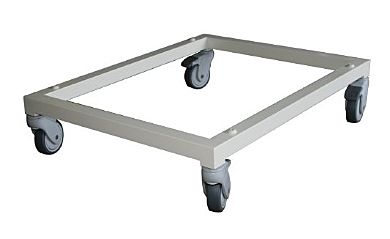

• Fits Oven Type: Support stand with casters for 180 L models
•Accessory Type:Stand
•Compatible With:Heratherm Advanced Protocol, Heratherm General Protocol, Heratherm Security
•Unit of Measure:EA
•Weight, Product:5磅
•Weight, Shipping:10 lb
Part Number | 51028066 | 51028067 | 51028068 |
---|---|---|---|

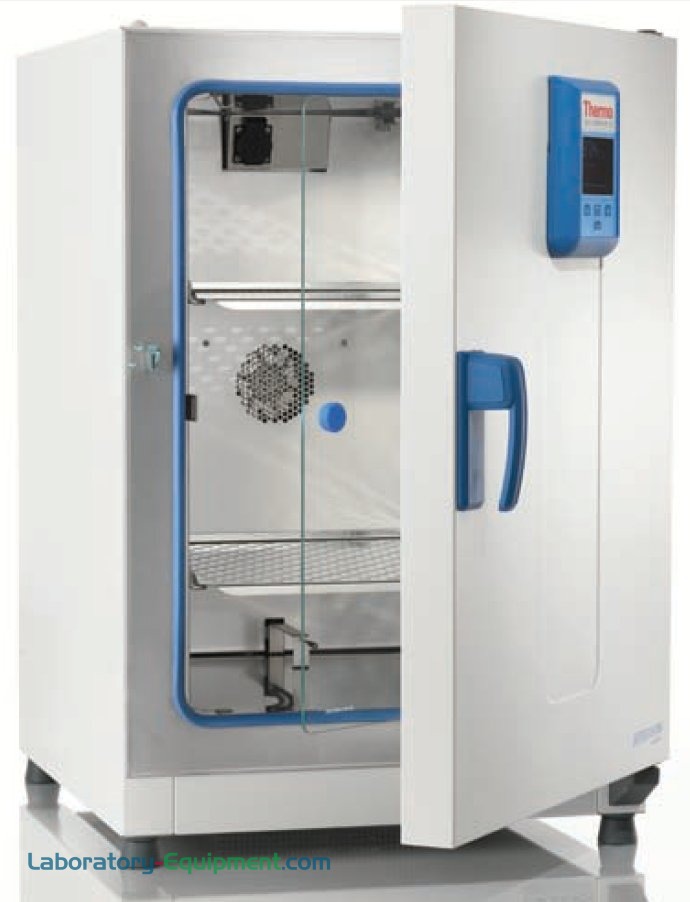

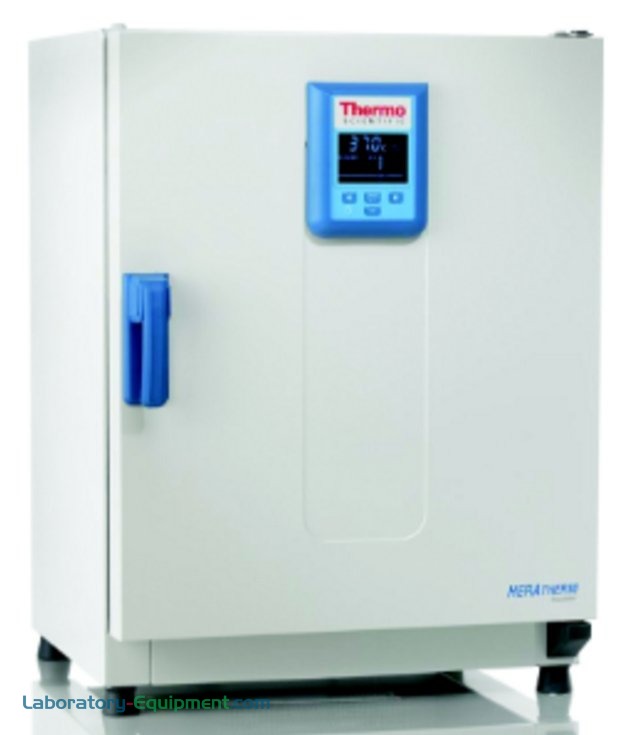

Model | IMH60 | IMH100 | IMH180 |
Chamber Volume | 2.3 cu. ft. (66L) | 3.67 cu. ft. (104L) | 6.3 cu. ft. (178L) |
External Dimensions | 22.2"W x 20.9"D x 28.3"H (565 x 530 x 720 mm) |
25.2"W x 32.3"D x 22.2"H (640 x 820 x 565 mm) |
25.2"W x 36.2"D x 29.1"H (640 x 920 x 738 mm) |
Internal Dimensions | 14.5"W x 13.9"D x 20"H (368 x 354 x 508 mm) |
18.3"W x 23.9"D x 14.5"H (464 x 608 x 368 mm) |
18.3"W x 27.9"D x 21.4"H (464 x 708 x 543 mm) |
Footprint | 3.2 sq. ft. (0.3m2) | 3.9 sq. ft.(0.9m2) | 5.1 sq. ft. (0.47m2) |
Rated power | 600 Watts | 840 Watts | 1020 Watts |
Max Current | 5 amps | 7 amps | 8.5 amps |
Energy Consumption at 37°C |
23 Watts | 30 Watts | 36 Watts |

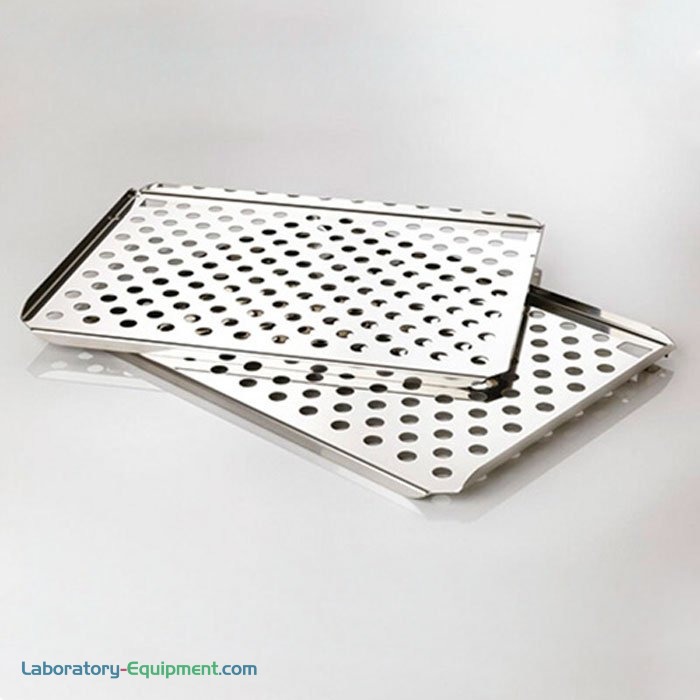

Number of Shelves | 2 included (13 max) | 2 included (16 max) | 2 included (19 max) |
Max Shelf Load | 55 lbs. (25kg) | 55 lbs. (25kg) | 65磅。(30公斤) |
Temperature Range | Ambient 5 °C to 105 °C | ||
Convection Technology | Dual Convection (Gravity and Mechanical) | ||
Spatial Temperature Deviation | ± 0.6°C at 37°C (uniformity) | ||
Electrical (plug standard) | 100 - 240 50/60hz (NEMA 5-15) | ||
Temperature Deviation Over Time (Stability) | ± 0.1°C | ||
Material | Stainless steel interior (AISI 304) for corrosion resistance | ||
Interface | RS232 | ||
Certifications/Compliance | cCSAus, CE | ||
Warranty | Two-Year Manufacturer Warranty | ||

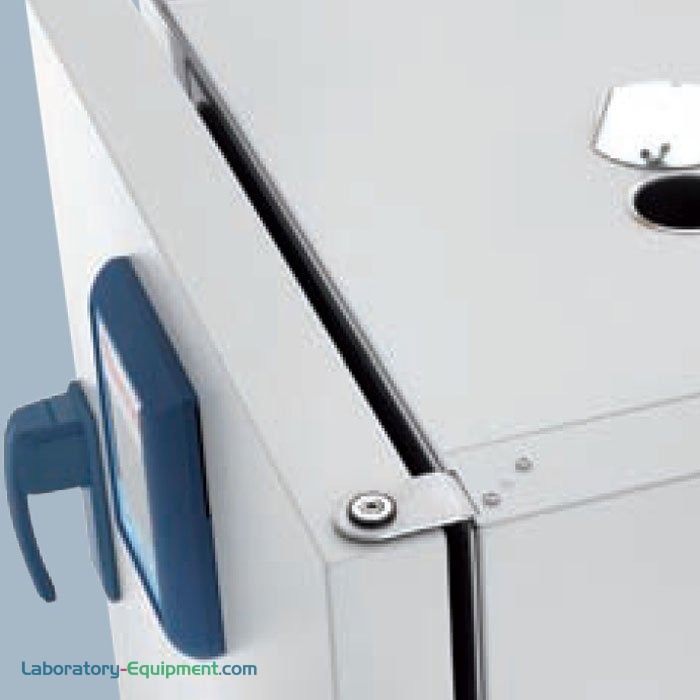

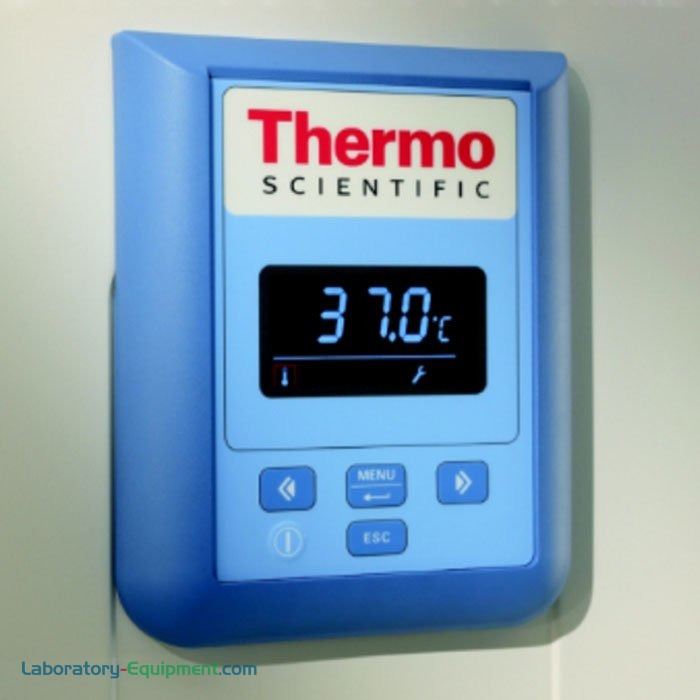

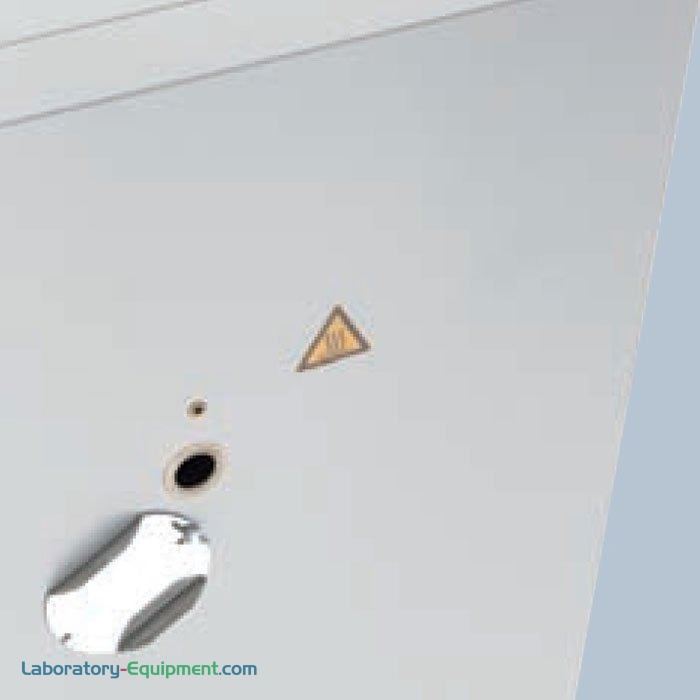

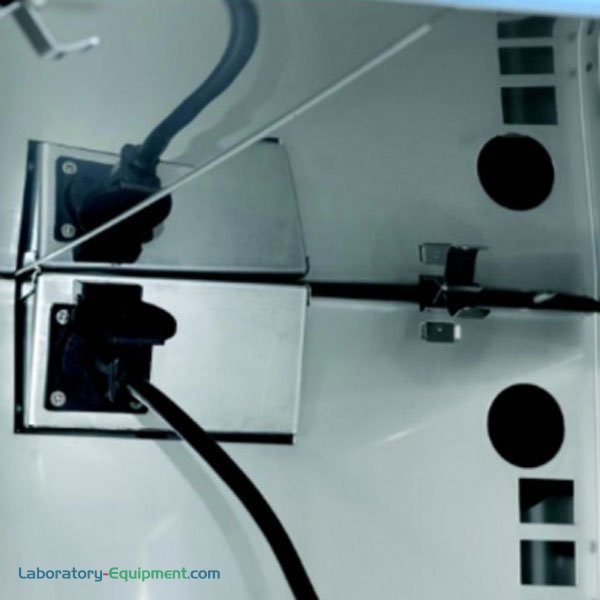

Features | Dual convection, interior socket, 6-speed fan, rounded corners, microprocessor control, automatic overtemperature alarm, access port, stackable, RS232 interface, internal glass door, easy calibration, timer(weekly/daily/real time), stackable |
